80+ Power


general
model number LPW1685-300W
article number 2856
EAN 4719867045104
form factor ATX 12V
power 300w
PFC active

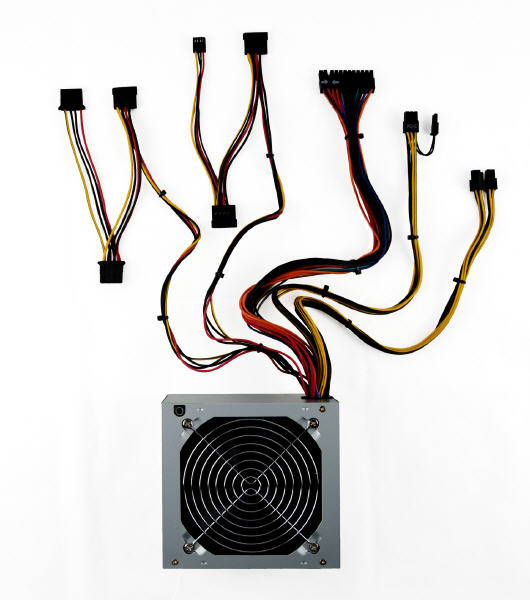

connectors
20+ 4 Pin 1
8P (4+4P) 12V 1
4 pin Floppy 1
4 pin Molex 2
SATA 3
6+2 PCI-E 1
Input
voltage 230 V
current 5 A
frequency 50 Hz
eco & efficiency
certificate 85+, EuP 2013
efficiency at 20% load 83,6%
efficiency at 50% load 88,6%
efficiency at 100% load 88,3%
cooling
fan size 120 mm, temperature-controlled
fan colour black
delivery
packaging Bulk
dimensions 150 x 140 x 85 mm
weight 1.29 kg (net) / 1.44 kg (gross)
amount / EUR-pallet 10 per carton / 320 per EUR-pallet

general

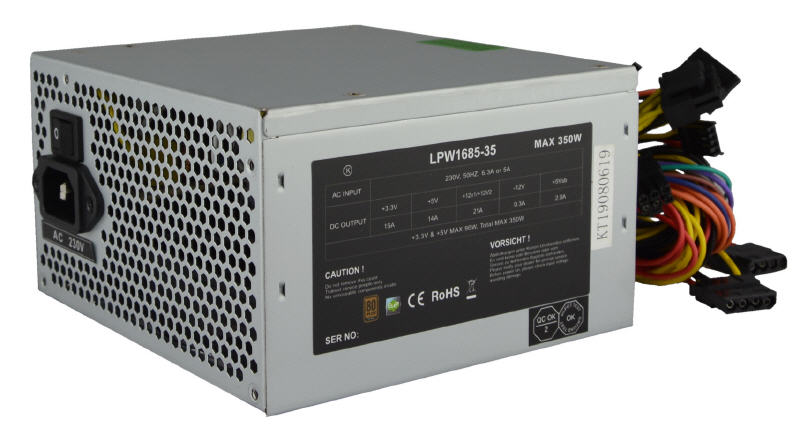

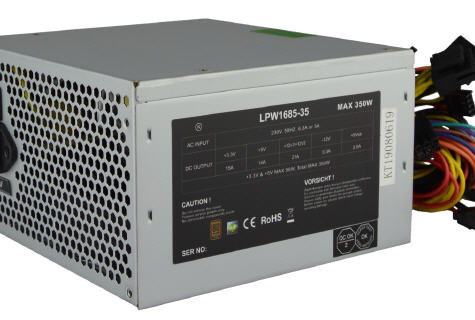

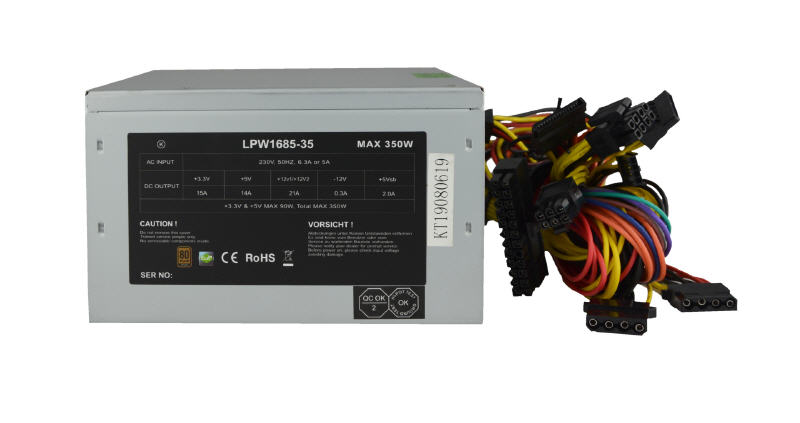

model number LPW1685-350W
article number 2857
EAN 4719867045111
form factor ATX 12V
power 350w
PFC active
connectors
20+ 4 Pin 1
8P (4+4P) 12V 1
4 pin Floppy 1
4 pin Molex 2
SATA 3
6+2 PCI-E 1
Input
voltage 230 V
current 5 A
frequency 50 Hz
eco & efficiency
certificate 85+, EuP2013
efficiency at 20% load 85,2%
efficiency at 50% load 89,9%
efficiency at 100% load 89,1%
cooling
fan size 120 mm, temperature-controlled
fan colour black
delivery
packaging Bulk
dimensions 150 x 140 x 85 mm
weight 1.29 kg (net) / 1.44 kg (gross)
amount / EUR-pallet 10 per carton / 320 per EUR-pallet

general
model number LPW1685-500W
article number 2700
EAN 4719867045135
form factor ATX 12V
power 500w
PFC active
connectors
20+ 4 Pin 1
8P (4+4P) 12V 1
4 pin Floppy 1
4 pin Molex 2
SATA 3
6+2 PCI-E 1
Input
voltage 200 - 240 V
current 3.5 A
frequency 47 - 63 Hz
eco & efficiency
certificate 80+ Bronze, EuP2013
efficiency at 20% load 84,7%
efficiency at 50% load 86,1%
efficiency at 100% load 82,9%
cooling
fan size 135mm, temperature-controlled
fan colour black
delivery
packaging Retail box
dimensions 157 x 150 x 85 mm
weight 1.29 kg (net) / 1.44 kg (gross)
amount / EUR-pallet 6 per carton / 400 per EUR-pallet

general
model number LPW1685-700W
article number 2701
EAN 4719867045159
form factor ATX 12V
power 700w
PFC active
connectors
20+ 4 Pin 1
8P (4+4P) 12V 1
4 pin Floppy 1
4 pin Molex 2
SATA 3
6+2 PCI-E 1
Input
voltage 200 - 240 V
current 5.5 A
frequency 47 - 63 Hz
eco & efficiency
certificate 80+ Bronze, EuP2013
efficiency at 20% load 83,2%
efficiency at 50% load 86,0%
efficiency at 100% load 83,3%
cooling
fan size 135mm, temperature-controlled
fan colour black
delivery
packaging Retail box
dimensions 157 x 150 x 85 mm
weight 2.15 kg (net) / 2.23 kg (gross)
amount / EUR-pallet 6 per carton / 400 per EUR-pallet
